• Country
• Norway

• Manufacturer / Brand
• Tandberg Radio; Oslo

• Year
• 1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 78100

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 49

• Semiconductors

• Main principle
• Audio-Amplification

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

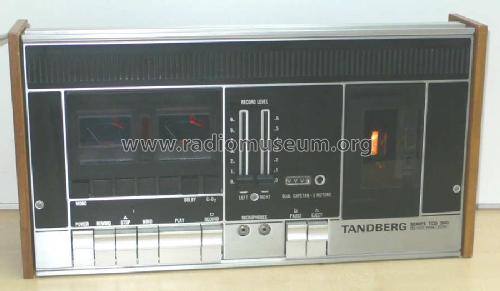

• Model: Cassette Deck TCD300 - Tandberg Radio; Oslo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 430 x 230 x 105 mm / 16.9 x 9.1 x 4.1 inch

• Notes
• Hi-Fi-Kassetten Recorder mit drei Motoren; Bandgeschwindigkeit 4,75 cm/s, Eingänge: Mikrofon (dyn. Impedanz 700 Ohm, 0,1 mV - 100 mV); Linear (40 mV - 4 Volt / 100 kOhm); Radio (8 mV - 0,8 Volt / 47 kOhm). Ausgänge: Radio / Linear 0,775 V / 10 kOhm. 47 Transistoren + 2 FET's.

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Price in first year of sale
• 2,350.00 NKr.

• Mentioned in
• Funk-Technik (FT) (4/1973, S.127f., Gerätebericht)

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.
