• Country
• Norway

• Manufacturer / Brand
• Tandberg Radio; Oslo

• Year
• 1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71321

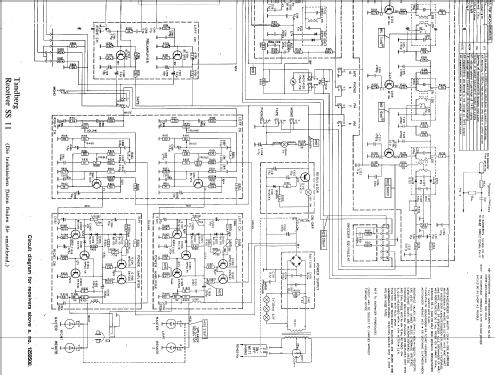

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 31

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115; 230; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (60 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sølvsuper 11 SS11 - Tandberg Radio; Oslo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 110 x 240 mm / 17.3 x 4.3 x 9.4 inch

• Notes

• Ausgangsleistung: 2× 20 Watt (Sinus) an 4 Ω. Ausgänge: LS 4–16 Ω 2 Paare; Kopfhörer 8–2000 Ω.

  Zählung Transistoren ohne den optionalen, steckbaren Stereo-Decoder.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 1,995.00 NOK

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.

• Other Models

• Here you find 204 models, 177 with images and 108 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Tandberg Radio; Oslo
