• Country
• Spain

• Manufacturer / Brand
• Tank Radio; Barcelona

• Year
• 1935 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 329614

• Number of Tubes
• 4

• Valves / Tubes
• 6A7 6B7 42 80

• Main principle
• Superhet, IF regeneration; ZF/IF 380 kHz; 1 AF stage(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

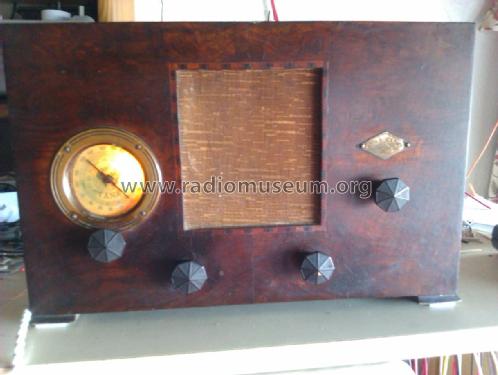

• Model: 435 - Tank Radio; Barcelona

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 350 x 235 x 205 mm / 13.8 x 9.3 x 8.1 inch

• Notes

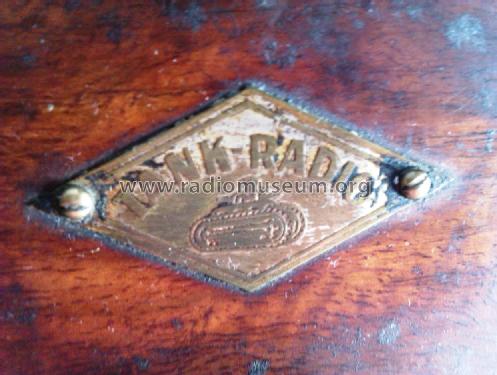

• Tank Radio, modelo 435

• Author
• Model page created by Victor Boj Cabistañ. See "Data change" for further contributors.

• Other Models

• Here you find 6 models, 1 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
