AM/FM Signal Generator 61A
Taylor Electrical Instruments Ltd.; Slough, Dover
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Taylor Electrical Instruments Ltd.; Slough, Dover
- Year
- 1960 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 294812

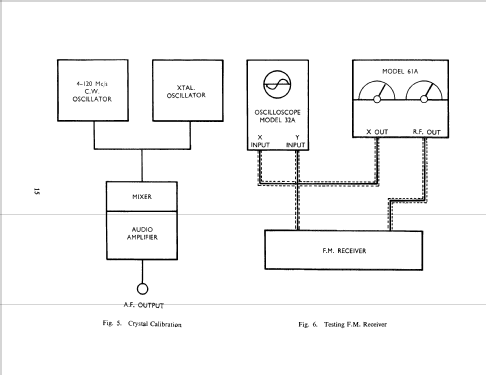

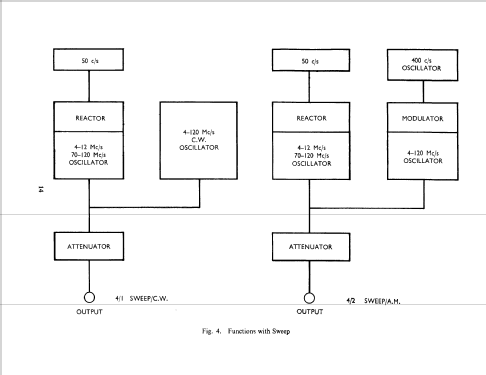

Picture from manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 115; 210; 240 @ 40-60 c/s Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: AM/FM Signal Generator 61A - Taylor Electrical Instruments
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 330 x 230 x 200 mm / 13 x 9.1 x 7.9 inch
- Notes
-
AM/FM Signal Generator; 4-120 MHz when AM and 4-12 + 70-120 MHz when FM;
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
