• Country
• Gran Bretaña (GB)

• Manufacturer / Brand
• Taylor Electrical Instruments Ltd.; Slough, Dover

• Year
• 1970 ??

• Category
• Aparato de medida y servicio (Equipo de laboratorio).

• Radiomuseum.org ID
• 105117

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - no hay

• Power type and voltage
• Pilas / 1.5 & 15 Volt

• Altavoz
• - - No hay salida de sonido.

• Material
• Bakelita

• from Radiomuseum.org

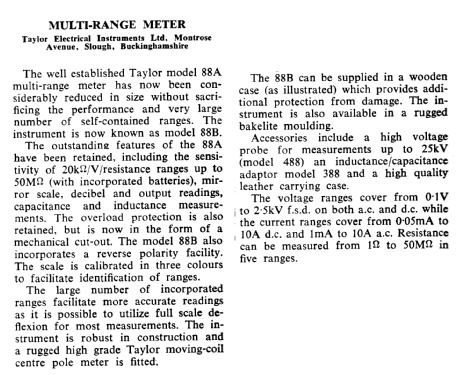

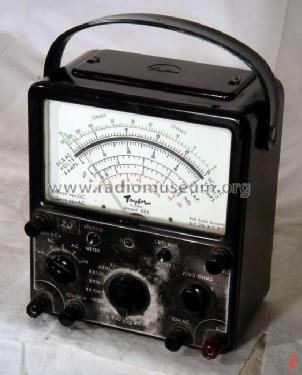

• Model: Multimeter 88B - Taylor Electrical Instruments

• Forma
• Sobremesa de cualquier forma, detalles no conocidos.

• Dimensions (WHD)
• 195 x 170 x 115 mm / 7.7 x 6.7 x 4.5 inch

• Notes

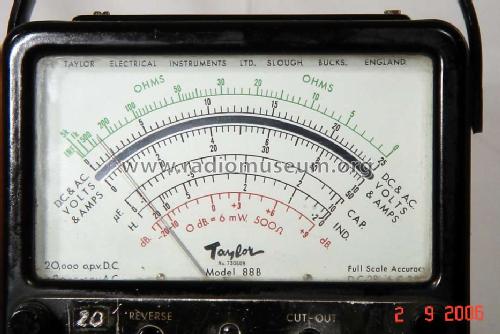

• Multimeter. R_i 20000/5000 Ohm/V; Measurement ranges:
  Voltage DC/AC 0.1 V...2500 V;
  Current DC/AC 0.1 mA...10 A;
  Resistance 1 kOhm...10 MOhm;
  C 0.1...10 µF; L 0.2...20 H; dB 0 dB = 6 mW/500 Ohm.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Juhani Makivuoti † 21.09.13. See "Data change" for further contributors.
