Valve Voltmeter Model 172A
Taylor Electrical Instruments Ltd.; Slough, Dover
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Taylor Electrical Instruments Ltd.; Slough, Dover
- Year
- 1960 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 137515

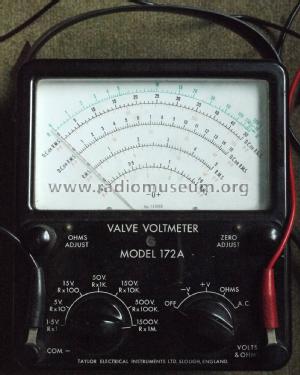

Front panel.

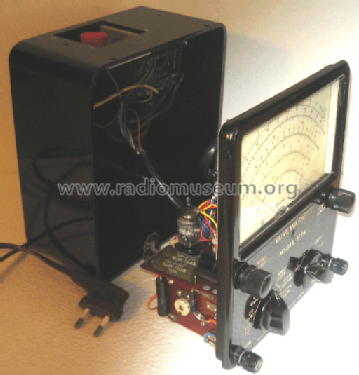

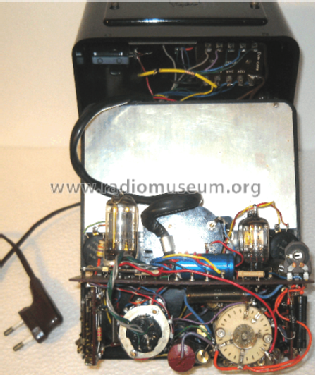

View.
Meter scale.
Originalprospekt
Originalprospekt
- Number of Tubes
- 3
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 210; 240 & 1.5 Volt
- from Radiomuseum.org
- Model: Valve Voltmeter Model 172A - Taylor Electrical Instruments
- Dimensions (WHD)
- 191 x 159 x 115 mm / 7.5 x 6.3 x 4.5 inch
- Notes
-
DC: 11 MOhm input resistance; 1.5-5-15-50-150-500-1500 V;
AC: about 1MOhm input resistance; 1.5-5-15-50-150-500-1500 V;
30Hz - 3MHz; with probe 50Hz - 200MHz.
Resistance: 1k-10k-100k-1M-10M-100M-1000MOhm.
25Watt;
Leather-covered housing with shoulder strap.DC: 11 MOhm Eingangswiderstand; 1,5-5-15-50-150-500-1500 V;
AC: ca.1MOhm Eingangswiderstand; 1,5-5-15-50-150-500-1500 V;
30Hz - 3MHz; mit Tastkopf 50Hz - 200MHz.
Widerstand: 1k-10k-100k-1M-10M-100M-1000MOhm.
25Watt;
lederbezogenes Gehäuse mit Tragegurt.
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Source of data
- - - Manufacturers Literature
- Mentioned in
- - - Manufacturers Literature (Schematic)
- Author
- Model page created by Lothar Schimmel. See "Data change" for further contributors.
