Bike-Radio
EDUTEC ("Marke" / "brand")
- Country
- Germany
- Manufacturer / Brand
- EDUTEC ("Marke" / "brand")
- Year
- 1995 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170827
-
- Brand: Eduscho
Originalkarton
Karton Rückseite
Radio von der Lenkerhalterung getrennt

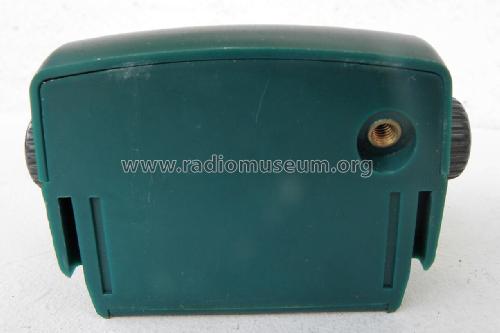

Nur Radio
Fahrradhalterung

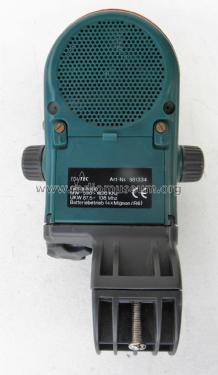

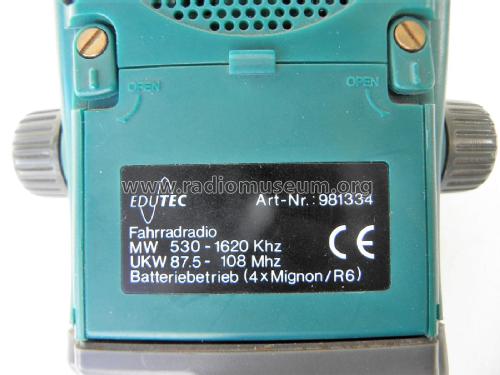

Unterseite

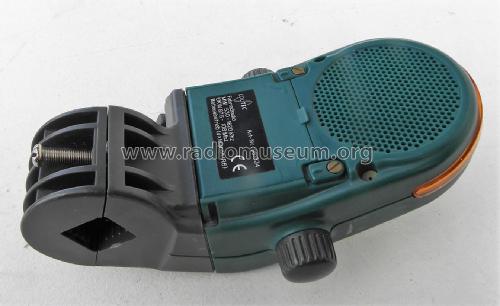

Seitenansicht mit Umschalter FM - AM
- Number of Transistors
- Semiconductors present.
- Semiconductors
- CXA1191
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Storage and/or dry batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Bike-Radio - EDUTEC "Marke" / "brand"
- Dimensions (WHD)
- 115 x 220 x 60 mm / 4.5 x 8.7 x 2.4 inch
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Werner Wussow. See "Data change" for further contributors.
