Stereo Cassette Deck A-150

TEAC; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1976/1977
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 152818
    • Brand: Tascam

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck A-150 - TEAC; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 410 x 160 x 300 mm / 16.1 x 6.3 x 11.8 inch
  • Notes

  • Teac Frontloading 2 Head Stereo Cassette Deck Model A-150.
    Belt Drive, Mechanical Tape Loading, Single Capstan Transport.
    Track System: 4-track, 2-channel stereo, Tape Speed: 4.8 cm/s
    Heads: 1 x record/playback, 1 x erase
    Tape Type: type I, Cr02
    Noise Reduction: B
    Frequency Response: 30Hz to 15kHz (Cr02 tape)
    Signal to Noise Ratio: 55dB (dolby B)
    Wow and Flutter: 0.09%
    Input: 60mV (line), 0.25mV (mic)
    Output: 0.3V (line)
    Power Requirements:
    General Export Model - 100/117/220/240VAC 50/60Hz
    USA & Canada Models -  117VAC 60Hz
    Europe Model - 220VAC 50Hz
    Power Consumption max. 13 Watts



  • Net weight (2.2 lb = 1 kg)
  • 7.9 kg / 17 lb 6.4 oz (17.401 lb)
  • Mentioned in

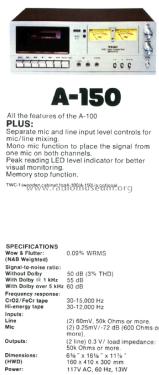

  • -- Original prospect or advert (Teac Brochure - Tape Recorder)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service & Owners Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
