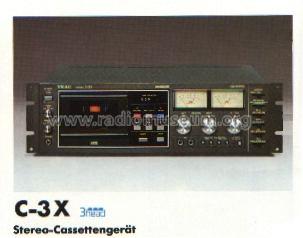

C-3X

TEAC; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1982 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 149816
    • Brand: Tascam

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: C-3X - TEAC; Tokyo
  • Shape
  • Rack
  • Dimensions (WHD)
  • 442 x 147 x 345 mm / 17.4 x 5.8 x 13.6 inch
  • Notes
  • HiFi-Tapedeck mit Dolby, HX und 3 Tonköpfen. 2 Bandgeschwindigkeiten 4,75 und 9,5cm/s
    Optional Fernbedienung RC-90.
    Gleichlaufschwankungen 0,03% (9,5cm/s), 20 - 20.000 Hz (Metal)(4,75cm/s), 20 - 25.000 Hz (Metal) (9,75cm/s).
  • Net weight (2.2 lb = 1 kg)
  • 9 kg / 19 lb 13.2 oz (19.824 lb)
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
