• Country
• Japan

• Manufacturer / Brand
• TEAC; Tokyo

• Year
• 2000 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 278481

• • Brand: Tascam

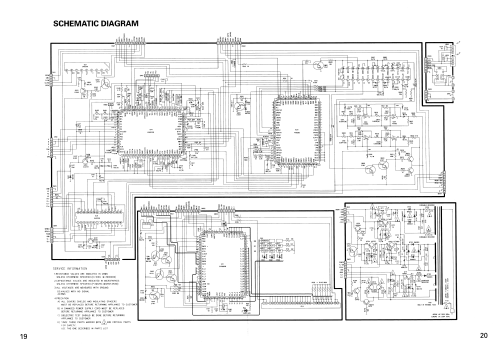

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Compact Disc Player PD-H500 - TEAC; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 285 x 131 x 292 mm / 11.2 x 5.2 x 11.5 inch

• Notes

• Teac Single Compact Disc Player Model PD-H500.
  Digital converter: PCM1710U, 1 bit, 8 x oversampling
  CD Mechanism: HOP-M3A
  Frequency response: 20Hz to 20kHz
  Signal to Noise Ratio: >100dB
  Total harmonic distortion: 0.02%
  Line output: 2V RMS
  Digital outputs: optical

  Power Requirements:
  E = European Model - 230VAC, 50Hz, 9 Watts
  DM = Japanese Model - 100VAC, 50Hz, 8 Watts

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Mentioned in
• - - Manufacturers Literature (Service Manual)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
