• Country
• Germany

• Manufacturer / Brand
• Team Electronic GmbH; Frankfurt/Main

• Year
• 1985 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 245414

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Transceiver; ZF/IF 10695/455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

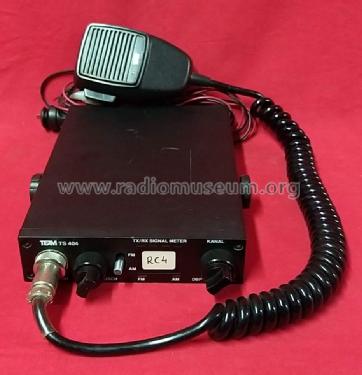

• Model: TS404 FM - Team Electronic GmbH;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 128 x 33 x 175 mm / 5 x 1.3 x 6.9 inch

• Notes

• CB-Mobilfunkgerät TS 404 FM, 40 Kanal FM im 27 MHz-Bereich; Scan-Funktion, Squelch, Channel Switch über Tasten oder Mikro, digitale Kanalanzeige, dyn. Mikrofon.

  Siehe auch Team TS404, AM-FM Betrieb umschaltbar.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Price in first year of sale
• 188.00 DM

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
