• Country
• Germany

• Manufacturer / Brand
• TEC Dieter Beer; Wiesbaden

• Year
• 1986 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 205414

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 28

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 2376 MID 23-076 - TEC Dieter Beer; Wiesbaden

• Shape
• Tablemodel, with any shape - general.

• Notes
• 2 Band Stereo Radio mit Doppelcassettenrecorder und Plattenspieler, Ausgangsleistung 70 Watt max, Bandlaufgeschwindikeit Normal 4,75cm/s und High-Speed 9,5cm/s.

• Literature/Schematics (1)

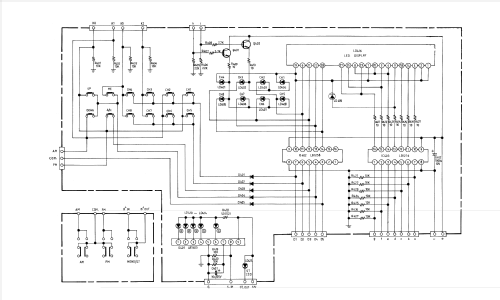

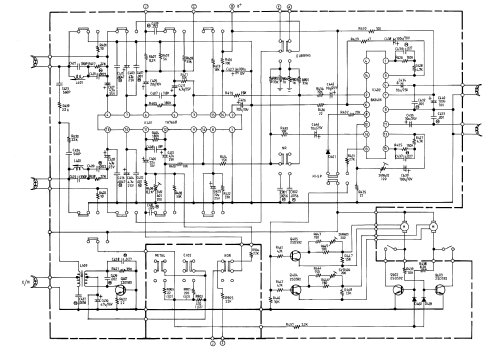

• -- Schematic

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
