Shebro Deluxe Mini Executive Corder DCS
Shewa Bros. Ltd. (Shebro); Kobe
- Country
- Japan
- Manufacturer / Brand
- Shewa Bros. Ltd. (Shebro); Kobe
- Year
- 1978 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 228058
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Shebro Deluxe Mini Executive Corder DCS - Shewa Bros. Ltd. Shebro; Kobe
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 155 x 120 x 46 mm / 6.1 x 4.7 x 1.8 inch
- Notes
-
Shebro Deluxe Mini Executive Corder model DCS

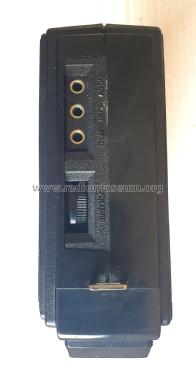

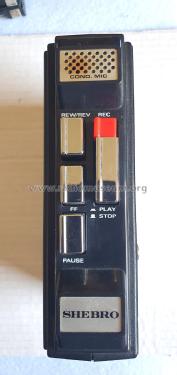

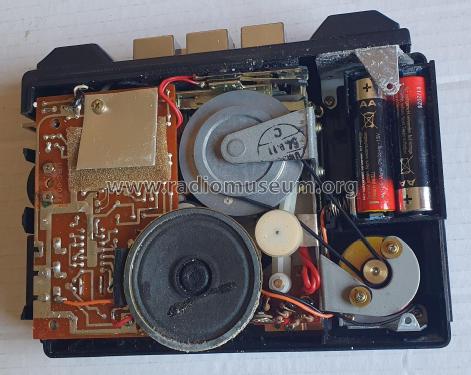

Built in condenser microphone - 3 digit analog tape counter- volume rotative control - side jacks for external power DC-6V, ear, external microphone - button for opening the cassette door - removable battery drawer - side metal hook for carrying strap.
Made in Japan.
- Net weight (2.2 lb = 1 kg)
- 0.590 kg / 1 lb 4.8 oz (1.3 lb)
- Author
- Model page created by Daniel Rosha. See "Data change" for further contributors.
