• Country
• Germany

• Manufacturer / Brand
• Technisch-Physikalische Werkstätten, (TPW), VEB; Thalheim (Ostd.)

• Year
• 1955–1957

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 97251

• • alternative name: TPW

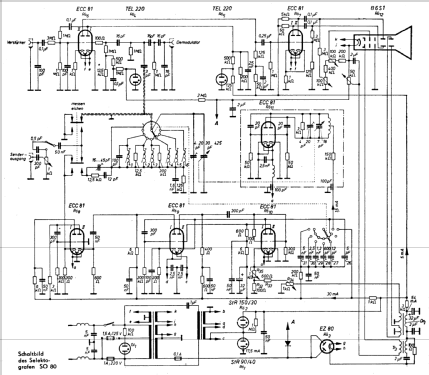

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC81 ECC81 ECC81 ECC81 ECC81 ECC81 EZ80 B6S1 StR90/40 StR150/30

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

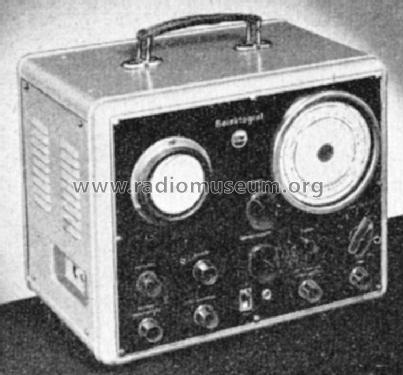

• Model: Selektograf SO80 - Technisch-Physikalische Werkst

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 330 x 280 x 270 mm / 13 x 11 x 10.6 inch

• Notes
• 7 Frequenzbereiche von 100 kHz bis 16 MHz, 85 bis 102 MHz. 0-20 % Wobbelhub.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Mentioned in
• Radio und Fernsehen 23/56

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
