Trennregeltrafo TRT280/1

• Country
• Germany

• Manufacturer / Brand
• Technisch-Physikalische Werkstätten, (TPW), VEB; Thalheim (Ostd.)

• Year
• 1955 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 78953

• • alternative name: TPW

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Trennregeltrafo TRT280/1 - Technisch-Physikalische Werkst

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 210 x 263 x 280 mm / 8.3 x 10.4 x 11 inch

• Notes

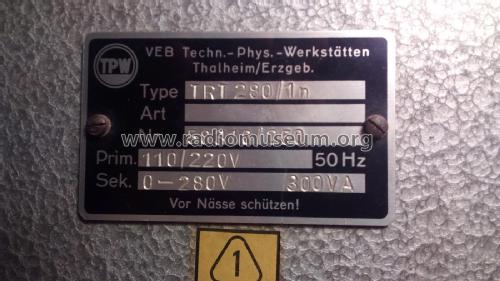

• 300 VA, 100...280 V, 3 A bei unter 100 V. 2 Dreheisenmessgeräte (300 V und 4 A).

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 304.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
