FM/AM Stereo Tuner ST-3200

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1975–1978 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 335733

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 19
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 50-60Hz, 100 or 110; 120; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org

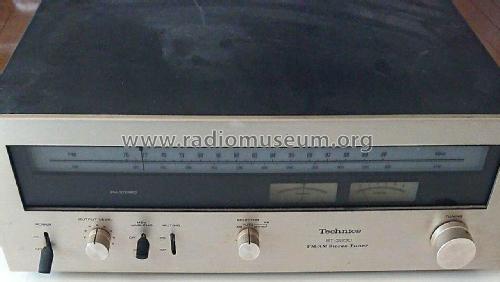

  • Model: FM/AM Stereo Tuner ST-3200 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 410 x 140 x 360 mm / 16.1 x 5.5 x 14.2 inch
  • Notes

  • Tuning Bands: FM, MW
    Tuning Scale: Analogue
    FM Tuning Range: 88 to 108 MHz
    MW Tuning Range: 520 to 1610 kHz
    Sensitivity: 1.8 µV (FM), 20 µV (MW)
    Signal to Noise Ratio: 75 dB (FM)
    Distortion: 0.4% (FM)
    Selectivity: 65 dB (FM), 30 dB (MW)
    Frequency response: 20 Hz to 15 kHz (FM)
    Output: 500 mV

    Known versions:

    • FM 88 to 108 MHz, multi-voltage 50-60 Hz, 110 - 240 V
    • FM 76 to 90 MHz (Japanese FM band), 50-60 Hz, 100 V
  • Net weight (2.2 lb = 1 kg)
  • 6.9 kg / 15 lb 3.2 oz (15.198 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bartosz Szwed. See "Data change" for further contributors.
