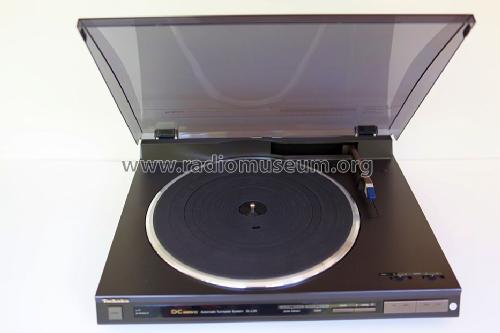

Automatic Turntable System SL-L20

• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1992

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 199045

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Automatic Turntable System SL-L20 - Technics brand

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 96 x 351 mm / 16.9 x 3.8 x 13.8 inch

• Notes
• Linear tracking automatic turntable system. DC motor.
  Linear tracking tone arm with plug-in-connector type. Cartridge EPS-P30S, moving magnet stereo cartridge. Replacement stylus EPS-30CS. Cartridge weight 6 g, stylus pressure 1.25 g.
  Frequency response: 10 Hz-35 kHz.
  Wow & flutter: 0.045% WRMS.
  Rumble: -70 dB. Belt Drive.

• Net weight (2.2 lb = 1 kg)
• 3.7 kg / 8 lb 2.4 oz (8.15 lb)

• Price in first year of sale
• 120.00 GBP

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Panagiotis Makridis. See "Data change" for further contributors.
