Compact Disc Player SL-P7

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1984/1985
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 154840

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player SL-P7 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 315 x 88 x 325 mm / 12.4 x 3.5 x 12.8 inch
  • Notes

  • A stereo hi-fi compact disc player. With RCA phono Line Out sockets, Synchro Recording terminal and External terminal and Voltage selector.

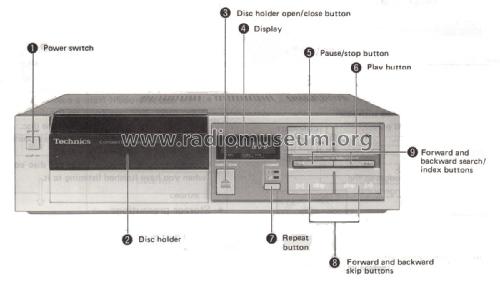

    Functions
    Search modes: Manual search, Index search, Skip search
    Display functions: All tracks, All playing time, Playing track, Playing time, Index number
    Operation buttons Basic buttons; 7, Repeat button; 1
    Disc loading: Motor driven, lateral loading
    Specification
    Audio
    No. of channels: 2 (left and right stereo)
    Frequency response: 2-20,000Hz ±0.5dB
    Dynamic range: > 96dB
    S/N ratio: > 96dB
    Total harmonic distortion 0.003% (1 kHz, 0dB)
    Channel separation: > 90dB
    Wow and flutter: below measurable limit
    Output
    Output voltage: 2V (at 0dB)
    Output impedance: 330Ω
    Load impedance:  > 5kΩ
    Signal Format
    Sampling frequency: 44.1 kHz
    Correction system: Technics Super Decoding Algorithm
    Pickup
    Type: Astigma 3-beam
    Light source: Semiconductor laser
    Wavelength: 800 nm

    Versions/Power Requirements
    110-120/220-240V AC 50/60Hz with voltage selector

    Power Consumption: 30W

  • Net weight (2.2 lb = 1 kg)
  • 4.9 kg / 10 lb 12.7 oz (10.793 lb)
  • Price in first year of sale
  • 700.00 $
  • Mentioned in
  • -- Original prospect or advert (84/85 Technics Hi-Fi catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual Technics SL-P7)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
