Compact Disc Player SL-PG100

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1991
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 154885

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 230-240; 110; 127; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player SL-PG100 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 102.6 x 280 mm / 16.9 x 4 x 11 inch
  • Notes

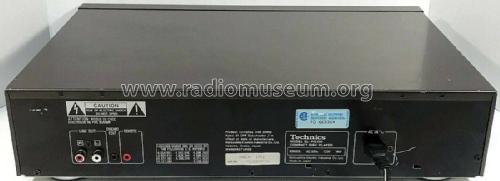

  • A stereo hi-fi compact disc player housed in a black metal case. RCA phono Line Out sockets, terminals for Synchro Edit and Remote control.

    Specification
    Audio
    No. of channels: 2 (left and right, stereo)
    Frequency response: 2-20,000Hz ±1dB
    Output voltage: 2V (at 0dB)
    Dynamic range: 92dB
    S/N ratio: 100dB
    Total harmonic distortion 0.007% (1 kHz, 0dB)
    Wow and flutter: below measurable limit
    DA Converter: MASH (1 bit)
    Output impedance: Approx. 1kΩ
    Load impedance:  More than 10kΩ
    Pickup
    Wavelength: 780 nm

    Versions/Power Requirements
    USA / 120V AC 60Hz
    Canada / 120V AC 60Hz
    Continental Europe / 230-240V AC 50/60Hz
    Australia / 230-240V AC 50/60Hz
    Others / 110/127/220/240V AC 50/60Hz

    Power Consumption: 14W (USA & Canada), 13W (Europe & Australia), 12W (Others)

    Made in Japan

  • Net weight (2.2 lb = 1 kg)
  • 3.4 kg / 7 lb 7.8 oz (7.489 lb)
  • Price in first year of sale
  • 160.00 $
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual Technics SL-PG100)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
