Compact Disc Player SL-PG200A

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1991
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 260783

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 230; 230-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player SL-PG200A - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 103 x 283 mm / 16.9 x 4.1 x 11.1 inch
  • Notes

  • A stereo hi-fi compact disc player housed in a black or silver metal case with wireless remote control. RCA phono Line Out sockets, Synchro Edit connection.

    Specification
    Audio
    No. of channels: 2 (left and right, stereo)
    Frequency response: 2-20,000Hz ±0.5dB
    Output voltage: 2V (at 0dB)
    Dynamic range: 96dB
    S/N ratio: 100dB
    Harmonic Distortion: 0.003% (1 kHz, 0dB)
    Total harmonic distortion 0.005% (1 kHz, 0dB)
    Wow and flutter: below measurable limit
    DA Converter: MASH (4 DAC)
    Output impedance: Approx. 600Ω
    Load impedance:  More than 10kΩ
    Pickup
    Wavelength: 780 nm

    Versions/Power Requirements

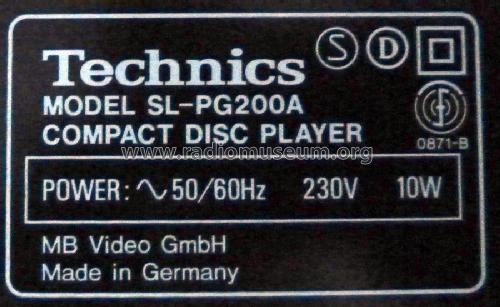

    (E)  Europe / 230V AC 50/60Hz
    (EB) Great Britain / 230-240V AC 50/60Hz
    (EG) F.R. Germany, Italy / 230V AC 50/60Hz

    Power Consumption: 10W

    Made in Germany

    The CD player is equipped with the Philips CDM 4/19 radial drive unit.

    Infrared Remote Control EUR64796



  • Net weight (2.2 lb = 1 kg)
  • 3.6 kg / 7 lb 14.9 oz (7.93 lb)
  • Price in first year of sale
  • 160.00 GBP
  • Mentioned in
  • -- Original prospect or advert (1991 Technics HiFi catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual Technics SL-PG200A)
