Compact Disc Player SL-PG340A

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1993/1994
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 318771

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 230-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player SL-PG340A - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 92 x 283 mm / 16.9 x 3.6 x 11.1 inch
  • Notes

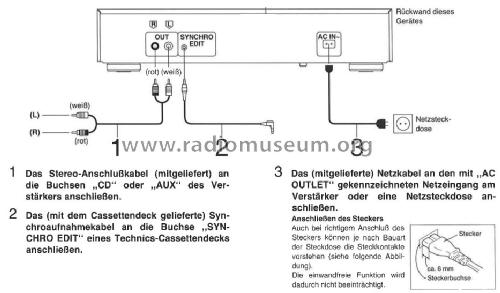

  • A stereo hi-fi compact disc player with a 1 bit MASH (Multi-Stage Noise Shaping) Bitstream DAC and a Philips CDM4/19 laser mechanism. RCA phono Line Out sockets, Synchro Edit connector.

    Specification DIN 45 500
    No. of channels 2 (left and right, stereo)
    Frequency response 2-20,000 Hz, ±0.5 dB
    Output voltage 2V (at 0 dB)
    Dynamic Range 96dB
    S/N  100 dB
    Harmonic distortion 0.0025% (1 kHz, 0 dB)
    Total harmonic distortion 0.004% (1 kHz, 0 dB)
    Wow and flutter  Below measurable limit
    DA converter  MASH (1 bit)
    Output impedance 600Ω
    Load impedance More than 10kΩ

    Versions/Power Requirements
    (E)  Europe / 230-240V AC 50/60Hz
    (EB) Great Britain / 230-240V AC 50/60Hz
    (EG) Germany, Italy / 230-240V AC 50/60Hz

    Power Consumption: 10W

  • Net weight (2.2 lb = 1 kg)
  • 3.6 kg / 7 lb 14.9 oz (7.93 lb)
  • Mentioned in
  • -- Original prospect or advert (1993-1994 Technics Hi-Fi catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual SL-PG340A)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
