Compact Disc Player SL-PG380A

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1996–1998
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 254012

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Alternating Current supply (AC) / 230-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player SL-PG380A - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 92 x 283 mm / 16.9 x 3.6 x 11.1 inch
  • Notes

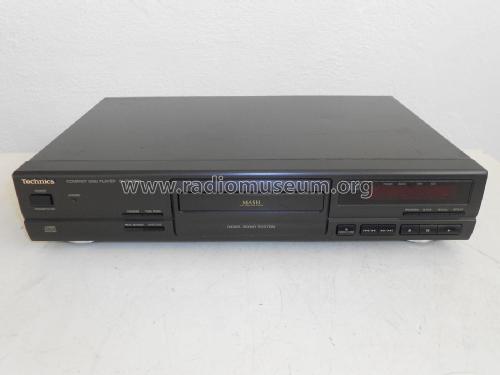

  • A stereo hi-fi compact disc player housed in a black metal case. RCA phono Line Out sockets.

    Specification
    Audio
    No. of channels: 2 (left and right stereo)
    Frequency response: 2-20,000Hz ±1dB
    Output voltage: 2V (at 0dB)
    Dynamic range: 92dB
    S/N ratio: 100dB
    Harmonic distortion: 0.005% (1 kHz, 0dB)
    Total harmonic distortion 0.007% (1 kHz, 0dB)
    Wow and flutter: below measurable limit
    DA Converter: MASH (1 bit)
    Output impedance: 1kΩ
    Load impedance:  more than 10kΩ
    Pickup Philips CDM12.1
    Wavelength: 780 nm

    Versions/Power Requirements
    (E)   Europe / 230-240V AC 50/60Hz
    (EB) Great Britain / 230-240V AC 50/60Hz
    (EG) Germany, Italy / 230-240V AC 50/60Hz

    Power Consumption: 13W

    Same as the Technics SL-PG480A Compact Disc Player which additionally has remote control.

    Made in Germany

  • Net weight (2.2 lb = 1 kg)
  • 3.1 kg / 6 lb 13.3 oz (6.828 lb)
  • Mentioned in
  • -- Original prospect or advert (1997-1998 Technics Hi-Fi catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manuals Technics SL-PG380A & SL-PG480A dated 1996)
  • Author
  • Model page created by Jürgen Küting. See "Data change" for further contributors.
