Compact Disc Player SL-PS620A

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1992/1993
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 318943

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 230-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player SL-PS620A - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 116 x 289 mm / 16.9 x 4.6 x 11.4 inch
  • Notes

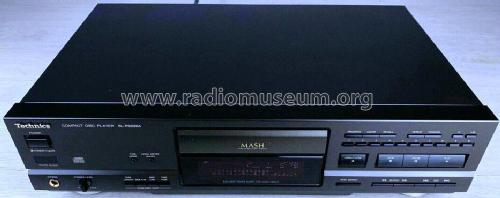

  • A stereo hi-fi compact disc player housed in a black metal case with wireless remote control. RCA phono Line Out sockets, a Synchro Edit connector and an Optical Digital output terminal. Jack for headphones with volume control.

    Specification
    Audio
    No. of channels: 2 (left and right stereo)
    Frequency response: 2-20,000Hz ±0.5dB
    Output voltage: 2V (at 0dB)
    Dynamic range: 99dB
    S/N ratio: 113dB
    Harmonic distortion: 0.0018% (1 kHz, 0dB)
    Total harmonic distortion 0.0028% (1 kHz, 0dB)
    Wow and flutter: below measurable limit
    DA Converter: MASH (4 DAC)
    Output impedance: Approx. 600Ω
    Load impedance:  more than 10kΩ
    Headphone output level: 15mW max. 32Ω (adjustable)
    Pickup Philips CDM4/19
    Wavelength: 780 nm

    Versions/Power Requirements
    (E)  Europe / 230-240V AC 50/60Hz
    (EB) Great Britain / 230-240V AC 50/60Hz
    (EG) F.R.Germany, Italy / 230-240V AC 50/60Hz

    Power Consumption: 10W

    Made in Germany

  • Net weight (2.2 lb = 1 kg)
  • 4.6 kg / 10 lb 2.1 oz (10.132 lb)
  • Mentioned in
  • -- Original prospect or advert (92 & 92/93 Technics Hi-Fi catalogues)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual Technics SL-PS620A)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
