• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1978 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 333690

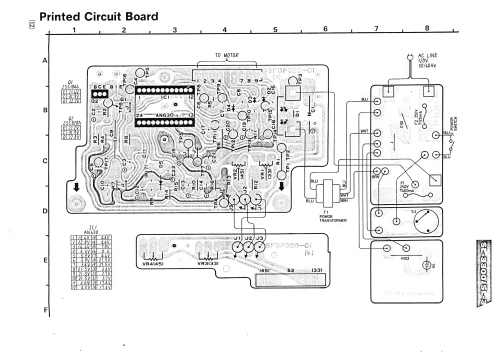

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

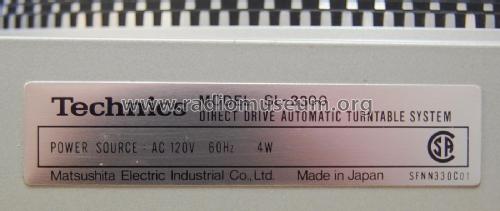

• Model: Direct Drive Automatic Turntable SL-3300 - Technics brand

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 430 x 130 x 375 mm / 16.9 x 5.1 x 14.8 inch

• Notes

• Two speed (33 & 45rpm) direct drive fully automatic turntable with auto-repeat function.

  Similar to Technics SL-3310 but with silver finish.

• Net weight (2.2 lb = 1 kg)
• 7.1 kg / 15 lb 10.2 oz (15.639 lb)

• Author
• Model page created by George Papaiz. See "Data change" for further contributors.
