Direct Drive Automatic Turntable System SL-D2

• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1979/1980 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 235436

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Direct Drive Automatic Turntable System SL-D2 - Technics brand

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 16.75 x 5.25 x 14 inch / 425 x 133 x 356 mm

• Notes

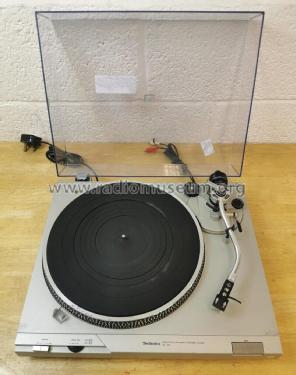

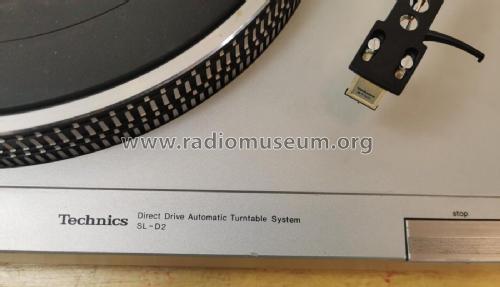

• Technics Two Speed (33 and 45 rpm) Direct Drive Automatic Turntable System Model SL-D2.

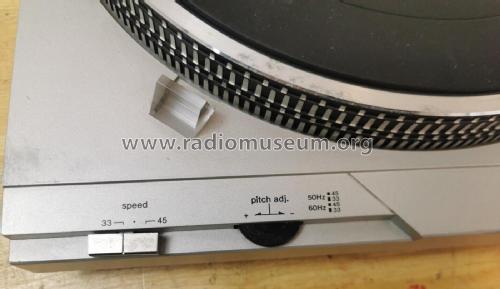

  Pitch Control, Stroboscope.
  Power Consumption 4 Watts.
  Made in Japan.

  There is a version of the same type, made for 120 Volt mains only.

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
