• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1980/1981

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154330

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 360 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

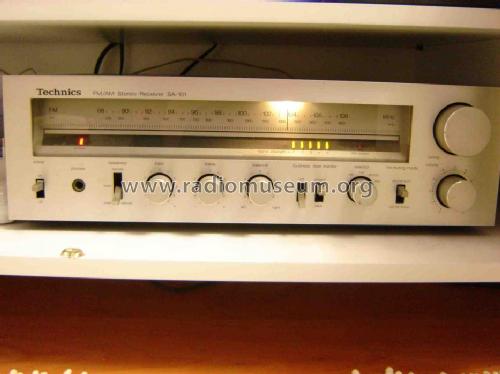

• Model: FM/AM Stereo Receiver SA-101 - Technics brand

• Shape
• Book-shelf unit.

• Notes
• AM/FM Stereo Receiver with 18 watts RMS per channel into 8 ohms.

• Net weight (2.2 lb = 1 kg)
• 5.448 kg / 12 lb 0 oz (12 lb)

• Price in first year of sale
• 180.00 $

• Mentioned in
• -- Original prospect or advert (Advertisement - Discoteca Hi-Fi, May 1981 - Italy)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
