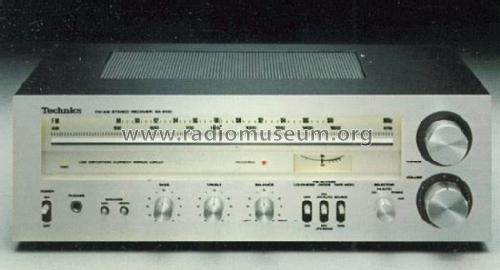

FM/AM Stereo Receiver SA-200
Technics (brand)
- Country
- Japan
- Manufacturer / Brand
- Technics (brand)
- Year
- 1978/1979
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 154340
Original prospekt in 1978.
Sales Brochure
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 50 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: FM/AM Stereo Receiver SA-200 - Technics brand
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 142 x 300 mm / 16.9 x 5.6 x 11.8 inch
- Notes
-
AM/FM Stereo Receiver. Same as the Technics SA-200L model which additionally has Long Wave coverage.
Power output: 25 watts per channel into 8 Ω (stereo)
Frequency response: 10 Hz to 30 kHz
Total harmonic distortion: 0.04 %
Damping factor: 32
Input sensitivity: 2.5 mV (MM), 180 mV (DIN), 150 mV (line)
Signal to noise ratio: 78 dB (MM), 95 dB (line)
Channel separation: 55 dB (line)
Output: 150 mV (line), 30 mV (DIN)
Speaker load impedance: 4 Ω to 16 Ω
- Net weight (2.2 lb = 1 kg)
- 7.718 kg / 17 lb 0 oz (17 lb)
- Price in first year of sale
- 240.00 $
- Literature/Schematics (1)
- - - Manufacturers Literature (Service Manual)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
