FM/AM Stereo Receiver SA-203

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1981/1982
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 154342

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 60 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM/AM Stereo Receiver SA-203 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 86 x 297 mm / 16.9 x 3.4 x 11.7 inch
  • Notes

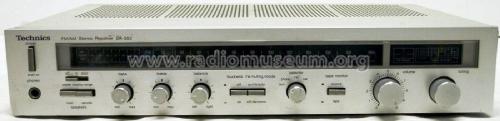

  • Technics FM/AM Stereo Receiver Model SA-203.
    30 Watts RMS per channel into 8 Ohms
    Frequency Range: AM 525 - 1605 kHz, FM 88 - 108 MHz
    Bass- & Treble Control, Loudness
    Phono IN, AUX IN, Tape IN/OUT
    AC Outlets 2x Unswitched max. 300 Watts
    Power Consumption 195 Watts

    Suffix:
    M - avaiable in U.S.A.
    MC - available in Canada


  • Net weight (2.2 lb = 1 kg)
  • 5.584 kg / 12 lb 4.8 oz (12.3 lb)
  • Price in first year of sale
  • 220.00 $
  • Mentioned in
  • - - Manufacturers Literature (Service Manual SD8103-1848)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
