• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154426

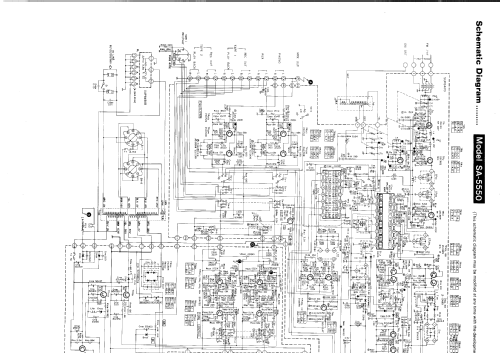

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 116 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: FM/AM Stereo Receiver SA-5550 - Technics brand

• Shape
• Book-shelf unit.

• Notes
• FM/AM Stereo Receiver with 58 watts RMS per channel into 8 ohms.

• Net weight (2.2 lb = 1 kg)
• 12.826 kg / 28 lb 4 oz (28.251 lb)

• Price in first year of sale
• 480.00 $

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
