FM/AM Stereo Tuner ST-C03

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1980–1982
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 154459

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM/AM Stereo Tuner ST-C03 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 297 x 49 x 244 mm / 11.7 x 1.9 x 9.6 inch
  • Notes

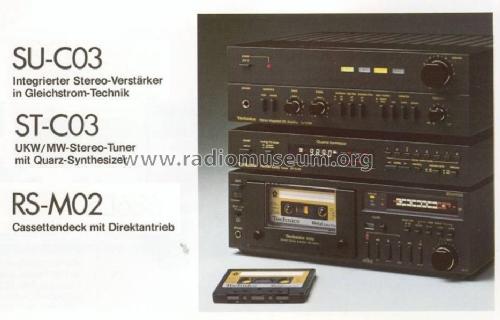

  • "Micro Series" FM/AM Stereo Digital-Tuner.

    Type: Mono/Stereo Tuner

    Tuning Bands: FM, MW

    Tuning Scale: Digital

    FM Tuning Range: 87.5 to 108 MHz

    MW Tuning Range: 522 to 1611 kHz

    Sensitivity: 1.9uV (FM), 250uV (MW)

    Signal to Noise Ratio: 65dB (FM)

    Distortion: 0.15% (FM)

    Selectivity: 75dB (FM), 30dB (MW)

    Frequency response: 20Hz to 15kHz (FM)

    Output: 300mV

  • Net weight (2.2 lb = 1 kg)
  • 2.815 kg / 6 lb 3.2 oz (6.2 lb)
  • Price in first year of sale
  • 370.00 $
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
