• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1982 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 227670

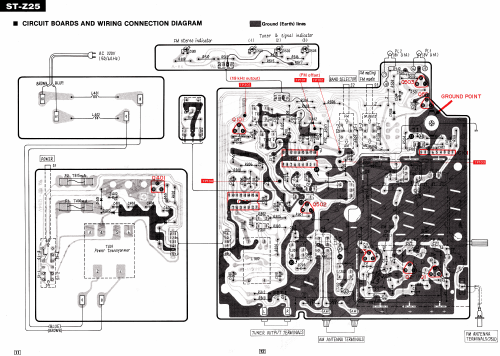

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SK359 2SC1674 2SC1675 2SC1685 2SD762 2SC1685 2SC1685 2SC1685 AN278 AN7273 µPC1161C

• Main principle
• Superheterodyne (common); ZF/IF 450/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

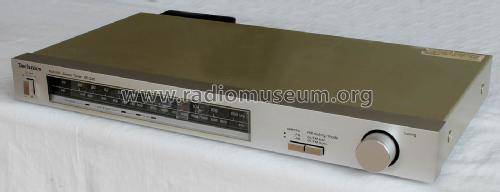

• Model: FM/AM Stereo Tuner ST-Z25 - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 53 x 251 mm / 16.9 x 2.1 x 9.9 inch

• Notes

• Ausführung für Deutschland.
  UKW: 87,5 - 108 MHz
  MW: 525 - 1605 kHz

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Jürgen Küting. See "Data change" for further contributors.
