Honeycomb Disc Speaker System SB-4

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1981
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 342166

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Honeycomb Disc Speaker System SB-4 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 285 x 540 x 262 mm / 11.2 x 21.3 x 10.3 inch
  • Notes

  • 3-way bass reflex box model Technics SB-4

    Specifications:

    Type: 3-way, 3-driver loudspeaker system
    Freq. Response:  45 Hz to 35 kHz
    Power Handling:  60 W
    Crossover Freq.: 1800, 3500 Hz
    Impedance: 8 Ω
    Sensitivity: 91 dB
    Bass: 1 x 220 mm honeycomb disc
    Midrange: 1 x 52 mm honeycomb disc
    Tweeter: 1 x 28 mm honeycomb disc
    Finish: Walnut Veneer



    3-Weg-Baßreflex-Box Modell Technics SB-4

    Tief-, Mitel- und Hochtöner mit Wabenscheiben-Flachmembran


    • Tiefton: 22 cm Wabenscheibe
    • Mittelton: 5,2 cm Wabenscheibe
    • Hochton: 2,8 cm Wabenscheibe

    Impedanz 8 Ohm, SInus 60 Watt / Musik 90 Watt, 91 dB/W/m
    Frequenzgang 45 - 35000 Hz
    Übergangsfrequenzen 1800 Hz, 3500 Hz

    Overload Indicator
    Protector Reset Button

    Gehäuse: Holz dunkelbraun

  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
  • Price in first year of sale
  • 500.00 DM
  • Mentioned in

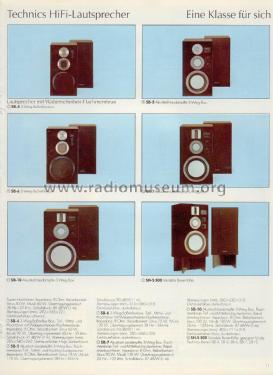

  • -- Original prospect or advert (HiFi-Programm Herbst '82 - Seite 11)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
