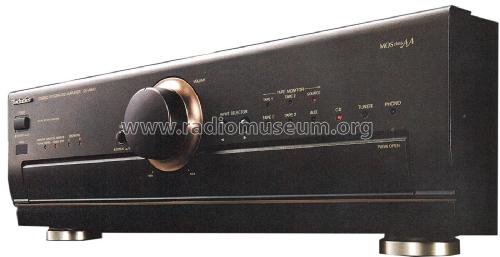

Integrated Stereo Amplifier SU-A800
Technics (brand)
- Country
- Japan
- Manufacturer / Brand
- Technics (brand)
- Year
- 1994
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 154547

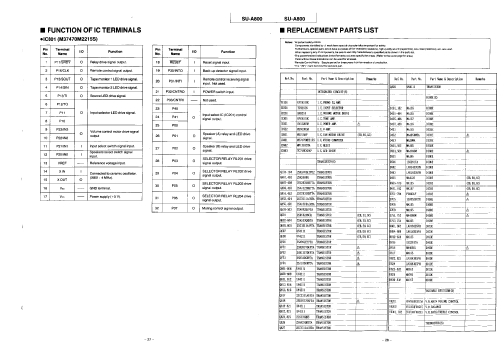

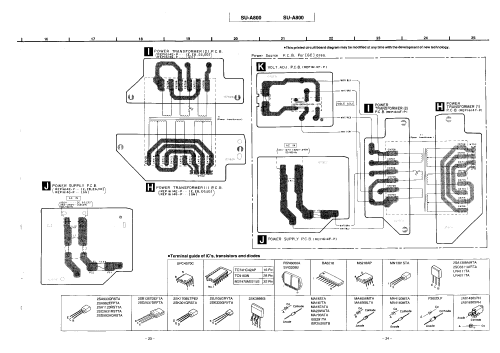

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 200 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Integrated Stereo Amplifier SU-A800 - Technics brand
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 136 x 365 mm / 16.9 x 5.4 x 14.4 inch
- Notes
-
Integrated Stereo Amplifier with 55 watts RMS per channel into 8 ohms.
Class of Operation: AA.Leistung n. DIN: 2 x 100W an 4 Ohm, 2x 70W an 8 Ohm, 2 x 55W an 8 Ohm (20Hz-20kHz), Fernbedienung
- Net weight (2.2 lb = 1 kg)
- 8.626 kg / 19 lb 0 oz (19 lb)
- Price in first year of sale
- 799.00 DM
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
