• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1984 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193998

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Micro-HIFI-System SA-007 - Technics brand

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 180 x 260 x 210 mm / 7.1 x 10.2 x 8.3 inch

• Notes

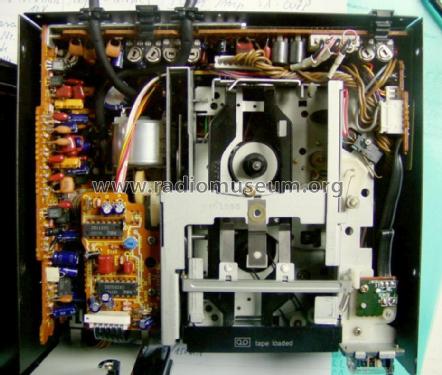

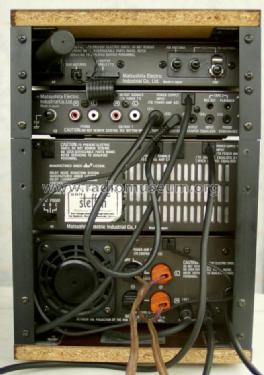

• Das System SA-007 besteht aus einzelnen, stapelbaren Komponenten: SA-007P Power amplifier mit 2 Aussteuerungsinstrumenten und Niederspannungsversorgung für die anderen Komponenten; SA-007C Control Amplifier; SA-007D Kassetten tape-deck; SA-007T Tuner für MW, LW und UKW-FM; Lautsprecher (8 Ohm) können extern angeschlossen werden.

• Net weight (2.2 lb = 1 kg)
• 7.4 kg / 16 lb 4.8 oz (16.3 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Felix Schaffhauser. See "Data change" for further contributors.
