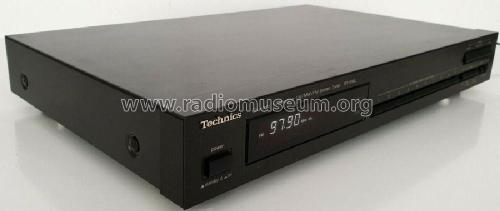

Quartz Synthesizer LW/MW/FM Stereo Tuner ST-610L

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1990/1991
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 318728

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Quartz Synthesizer LW/MW/FM Stereo Tuner ST-610L - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 69 x 290 mm / 16.9 x 2.7 x 11.4 inch
  • Notes

  • A stereo hi-fi tuner covering LW, MW and FM. Memory for 24 preset AM or FM radio stations, signal strength indicators. Connector for a 75Ω coaxial outdoor FM antenna, terminals for outdoor AM antenna and supplied AM loop antenna, RCA phono Line Out sockets.

    Frequency ranges
    FM  : 87.50 - 108 MHz
    MW : 522 - 1611kHz in 9kHz steps, 530 - 1620kHz in 10kHz steps
    LW  : 155 - 353kHz in 9 kHz steps, 153 - 351kHz -2kHz shift.

    Versions/Power Requirements
    Great Britain / 240 volts AC 50/60 Hz
    Continental Europe, France / 220 volts AC 50/60 Hz

    Power Consumption: 9W

    Similar to the Technics ST-610 Quartz Synthesizer AM/FM Stereo Tuner which has MW and FM only.

  • Net weight (2.2 lb = 1 kg)
  • 2.4 kg / 5 lb 4.6 oz (5.286 lb)
  • Mentioned in
  • -- Original prospect or advert (90/91 Technics Hi-Fi Catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual ST-610L Quartz Synthesizer Stereo Tuner)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
