• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141236

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

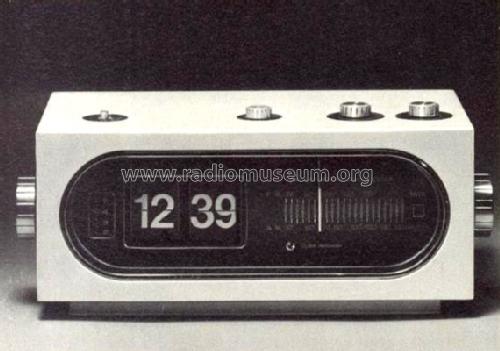

• Model: RC-7580 - Technics brand

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 235 x 100 x 105 mm / 9.3 x 3.9 x 4.1 inch

• Notes
• Netzunabhängiges AM/FM-Uhrenradio, Stimmgabelsteuerung für Gang-Genauigkeit, getrennte Stromversorgung von Uhr und Radioteil. Gehäusefarben: weiss oder weiss-marmoriert. Zubehör: Ohrhörer. Anschlüsse: Ohrhörer und Aussenantenne. Eingebaute Ferritantenne, 10 Transistoren und 1 FET.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Price in first year of sale
• 349.00 DM

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
