FM/AM Stereo Receiver SA-5160

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1976
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 151816

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 52 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: FM/AM Stereo Receiver SA-5160 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 142 x 355 mm / 16.5 x 5.6 x 14 inch
  • Notes

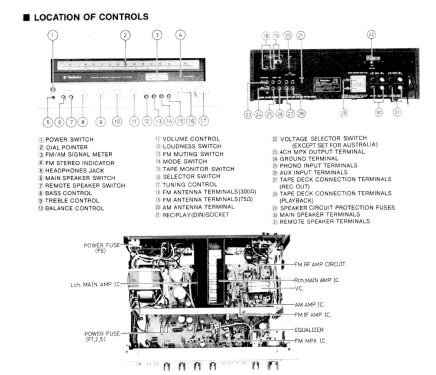

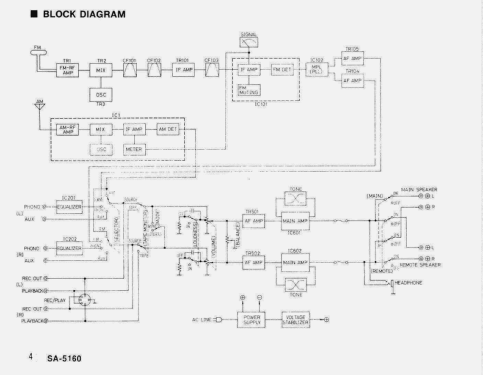

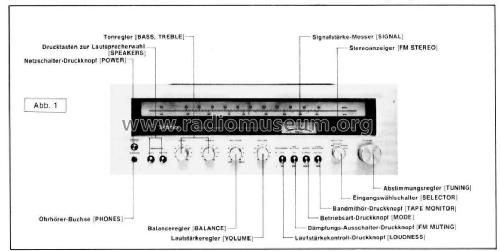

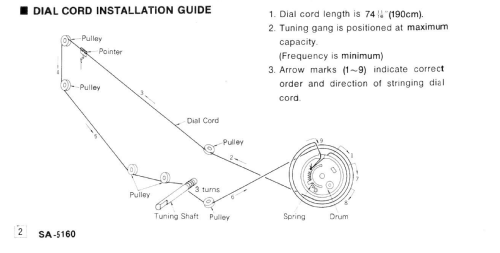

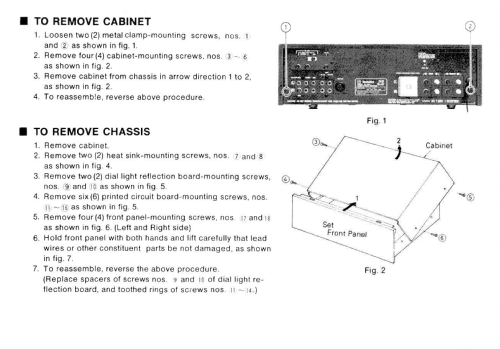

  • Technics FM/AM Stereo Receiver Model SA-5160.
    Tuning Range:
    FM 88 - 108 MHz
    AM 525 - 1605 kHz
    Power Output:
    25 Watts per channel into 8Ω (stereo)
    Frequency Response: 20Hz to 20kHz
    Total harmonic distortion: 0.5%
    Damping factor: 40
    Input sensitivity: 2.5mV (MM), 180mV (DIN), 150mV (line)
    Signal to noise ratio: 75dB (MM), 90dB (line)
    Output: 180mV (line), 30mV (DIN)
    Bass Control 50Hz +/-13dB
    Treble Control 10000Hz +/-12dB
    Loudness Control (Volume at -30dB) 50Hz +10dB
    Speaker load impedance: 4Ω (minimum)
    Power Consumption 260 Watts.


  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Price in first year of sale
  • 230.00 $
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • - - Manufacturers Literature (Service Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
