• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1976/1977

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 151819

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

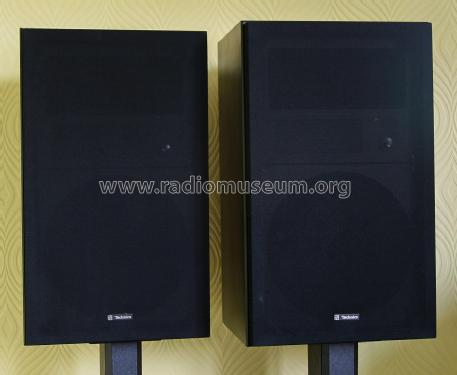

• Model: SB-440 - Technics brand

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 358 x 595 x 317 mm / 14.1 x 23.4 x 12.5 inch

• Notes
• 3-Weg-Bassreflexbox, 50 Watt Spitzenbelastbarkeit an 8 Ohm, 35 - 20.000 Hz, 93dB/W/m.
  250mm TT, 250x100mm Mehrkammer-Horn, 65mm HT-Horn, Übergänge bei 1.500 und 7.000 Hz 12dB/Okt.

• Net weight (2.2 lb = 1 kg)
• 17.4 kg / 38 lb 5.2 oz (38.326 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
