SB-R3
Technics (brand)
- Country
- Japan
- Manufacturer / Brand
- Technics (brand)
- Year
- 1979 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 251460

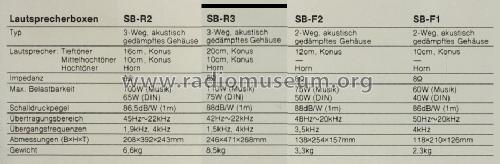

Technics Sales Brochure
Technics Sales Brochure
Technics Sales Brochure
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: SB-R3 - Technics brand
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 246 x 471 x 268 mm / 9.7 x 18.5 x 10.6 inch
- Notes
-
Technics 3-Weg Lautsprecherbox Model SB-R3.
Akustisch gedämpftes Gehäuse, Stand- oder Regalbox
110 Watt Musik / 75 Watt DIN, 42 - 22000 Hz, 88 dB/W/m, 8 Ohm
CrossOver: 1500 Hz, 4000 Hz
1x Tieftöner 200mm Konus
1x Mittelhochtöner 120mm Konus
1x Hochtöner Horn
- Net weight (2.2 lb = 1 kg)
- 8.5 kg / 18 lb 11.6 oz (18.722 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
