• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1980

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 219313

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 90 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

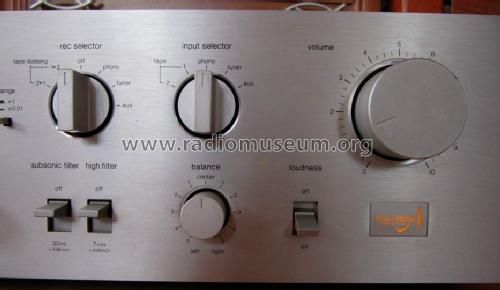

• Model: Stereo Integrated DC Amplifier SU-V2A - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 142 x 257 mm / 16.9 x 5.6 x 10.1 inch

• Notes

• New Class A Verstärker mit Fluoreszenz-Aussteuerungsanzeige, Bass- und Höhenregler, Eingängen für Aux, Tuner, Phono, Tape 1 und Tape 2, getrenntem Aufnahmewahlschalter, Loudness, Tiefton- (30Hz) und Hochton- (20kHz) Filter und Balanceregler.
  Zwei Lautsprecherpaare getrennt schaltbar.

  Technische Daten:

  Ausgangsleistung:

  • 2x 55W sinus an 4Ohm (1kHz)
  • 2x 45W sinus an 4 Ohm (20Hz ... 20kHz)
  • 2x 40W sinus an 8 Ohm (20Hz ... 20kHz)

  Frequenzgang

  • 30Hz ... 15kHz (Phono, +/- 0,8dB)
  • 5Hz ... 100kHz (alle anderen Eingänge, -3dB)
  • 20Hz ... 20kHz (+0dB, -0,3dB)

  Gesamtklirrfaktor:

  • 0,03% (4Ohm)
  • 0,02% (8Ohm)



• Net weight (2.2 lb = 1 kg)
• 6.9 kg / 15 lb 3.2 oz (15.198 lb)

• Price in first year of sale
• 448.00 DM

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
