Stereo Cassette Deck RS-AZ7

• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1996–1998

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 155053

• Picture

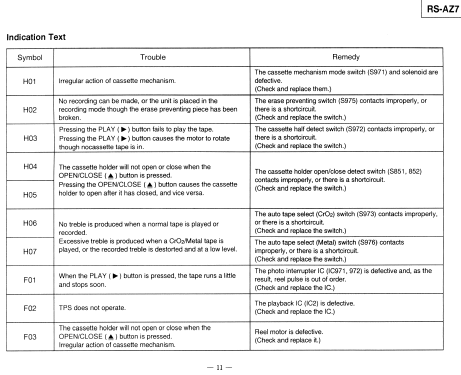

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 230-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

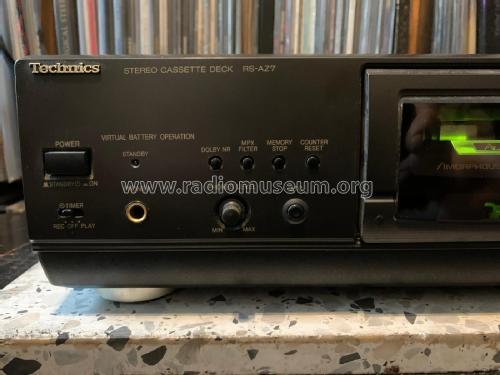

• Model: Stereo Cassette Deck RS-AZ7 - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 125 x 290 mm / 16.9 x 4.9 x 11.4 inch

• Notes

• Frontloading 3-Head Stereo Cassette Deck with Dolby B + C, MPX Filter, Dolby HX Pro and Metal Tape Capability. Class AA.
  4-Digit Digital Counter, Linear Tape Counter, Digital Peak-Reading Meters.
  ATC (Auto Tape Calibration).
  Wireless Remote Control.


  Track System: 4-track, 2-channel stereo
  Tape Speed: 4.75 cm/s
  Heads: 1 x combination record/playback, 1 x erase
  Motor: 1 x reel, 1 x capstan
  Tape Type: type I, CrO₂, Metal
  Noise Reduction: Dolby B, C
  Headroom Extension: HX Pro
  Frequency Response: 20 Hz to 23 kHz  (Metal tape)
  Signal to Noise Ratio: 78 dB  (Dolby C)
  Wow and Flutter: 0.07%
  Input: 100 mV (line)
  Output: 0.5 V (line)

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Price in first year of sale
• 310.00 $

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
