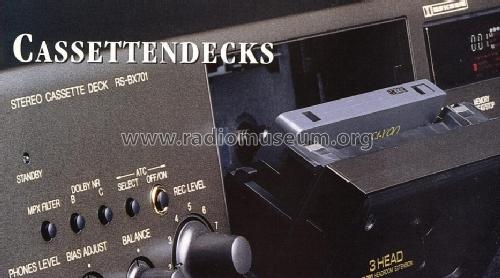

Stereo Cassette Deck RS-BX701

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1994/1995
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 155139

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck RS-BX701 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 125 x 293 mm / 16.9 x 4.9 x 11.5 inch
  • Notes

  • Technics Stereo Cassette Deck Model RS-BX701.
    Frontloading 3-Head Stereo Cassette Deck with Dolby B + C, MPX Filter, Dolby HX Pro
    Metal Tape Capability.
    4-Digit Digital Counter, Digital Peak-Reading Meters, Peak Hold.
    Frequency Response: 30Hz to 19kHz (Metal tape)
    Signal to Noise Ratio: 74dB (dolby C)
    Wow and Flutter: 0.07%
    Input: 100mV (line)
    Output: 0.5V (line)
    Wireless Remote Control
    Suffix for Model No.:
    E - Europe
    EB - Great Britain
    EG - Germany

  • Net weight (2.2 lb = 1 kg)
  • 4.6 kg / 10 lb 2.1 oz (10.132 lb)
  • Price in first year of sale
  • 265.00 $
  • Mentioned in
  • - - Manufacturers Literature (Service & Instruction Manual)
  • Literature/Schematics (1)
  • -- Original prospect or advert (Technics Catalogue 'HiFi')
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
