• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1980/1981

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 155214

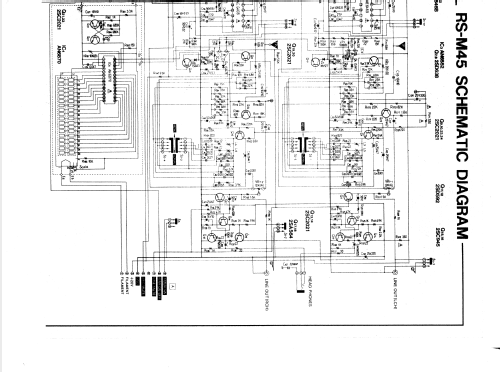

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 125;220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Cassette Deck RS-M45 - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 98 x 345 mm / 16.9 x 3.9 x 13.6 inch

• Notes
• Frontloading 2-Head Stereo Cassette Deck with Dolby B and Metal Tape Capability. Direct Drive Dual Motor System, 4-track 2 channel stereo recording and playback, Tape Speed: 4,8 cm/s. Metal tape 20-20.000 Hz; Microphone sensitivity 25mV, Input Impedance 100Kohm. Line: 60 mV/47 Kohm, Line output: 700 mV/2,5 Kohm.
  Price in Italy in 1980: 430.000 ITL.

• Net weight (2.2 lb = 1 kg)
• 6.1 kg / 13 lb 7 oz (13.436 lb)

• Price in first year of sale
• 375.00 $

• Mentioned in
• Discoteca HiFi, Anno XXI, n. 208-209, Agosto-Settembre 1980, Italy

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
