Stereo Cassette Deck RS-M5
Technics (brand)
- Country
- Japan
- Manufacturer / Brand
- Technics (brand)
- Year
- 1980
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 155225
- Number of Transistors
- 19
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

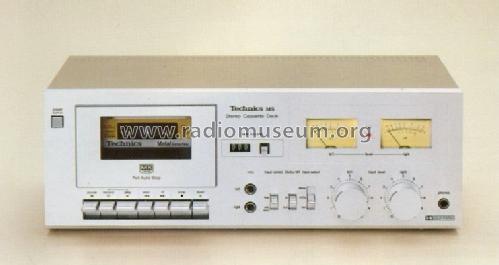

- Model: Stereo Cassette Deck RS-M5 - Technics brand
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 410 x 140 x 205 mm / 16.1 x 5.5 x 8.1 inch
- Notes
-
Frontloading 2-Head Stereo Cassette Deck with Chrome Tape Capability.
3-Digit Mechanical Counter, Analog Needle Meters.
Price in Italy in 1980: 190.000 ITL.Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: electronically controlled DC
Tape Type: type Normal, CrO2, Metal with manual selector
Noise Reduction: Dolby B in/out
Frequency Response: 20Hz to 17kHz (Metal tape)
Signal to Noise Ratio: 66 dB (dolby B)
Wow and Flutter: 0.07 %
Input: 60 mV (line), 0.25 mV (mic)
Output: 0.42 V (line)Input for stereo microphone, jack for earphones
Transistors listed once per type.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
