• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1981 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 254083

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 360 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

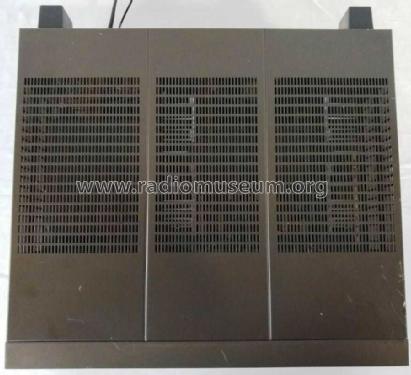

• Model: Stereo DC Power Amplifier SE-A5 - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 178 x 416 mm / 16.9 x 7 x 16.4 inch

• Notes

• HiFi Endverstärker SE-A5.
  2x 180W an 4 Ohm nach DIN 45 500.
  Leistungsanzeige mit 2 dekorativen Drehspulmeßwerken 0,1mW-300W.
  Max. Leistungsaufnahme 1000W.

• Net weight (2.2 lb = 1 kg)
• 18.4 kg / 40 lb 8.5 oz (40.529 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
