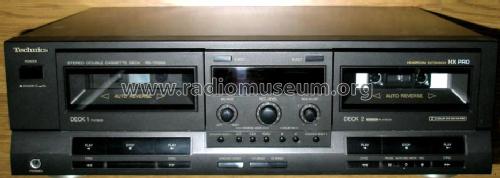

Stereo Double Cassette Deck RS-TR333
Technics (brand)
- Country
- Japan
- Manufacturer / Brand
- Technics (brand)
- Year
- 1992 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 181692
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 230-240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Double Cassette Deck RS-TR333 - Technics brand
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 136 x 290 mm / 16.9 x 5.4 x 11.4 inch
- Notes
- Stereo Double Cassette Deck, for Normal, CrO2 and Metal tape, Dolby B and C.
- Net weight (2.2 lb = 1 kg)
- 4.7 kg / 10 lb 5.6 oz (10.352 lb)
- Author
- Model page created by Bernardo Diaz. See "Data change" for further contributors.
