• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1981/1982

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 154774

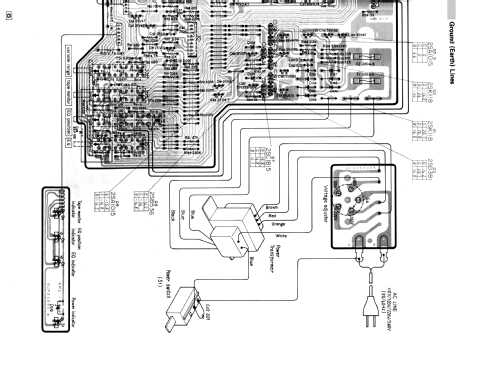

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Frequency Equalizer SH-8015 - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 86 x 273 mm / 16.9 x 3.4 x 10.7 inch

• Notes

• Stereo Graphic Equalizer: 2 Channels, 10 Bands per channel +/- 12dB.

  Input Sensitivity: 500mV (6V max)
  Output Level: 500mV (6V max)
  Gain: ± 0dB
  Frequency response: 5Hz to 100kHz
  Signal to Noise Ratio: 101dB
  Total harmonic distortion: 0.02%
  Control Range: ± 12dB
  Frequency Bands: 63, 240, 1K, 4K, 16KHz

• Net weight (2.2 lb = 1 kg)
• 3.450 kg / 7 lb 9.6 oz (7.599 lb)

• Price in first year of sale
• 200.00 $

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
