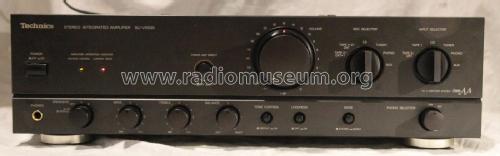

Stereo Integrated Amplifier SU-VX500

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1992 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 287701

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 230; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Integrated Amplifier SU-VX500 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 125 x 316 mm / 16.9 x 4.9 x 12.4 inch
  • Notes

  • Power output: 50 W per channel into 8 Ω (stereo)
    Frequency response: 20 Hz to 20 kHz
    Total harmonic distortion: 0.007 %
    Damping factor: 60
    Input sensitivity: 0.17 mV (MC), 2.5 mV (MM), 150 mV (line)
    Signal to noise ratio: 66 dB (MC), 78 dB (MM), 97 dB (line)
    Output: 150 mV (line)
    Speaker load impedance: 4 Ω to 16 Ω

  • Net weight (2.2 lb = 1 kg)
  • 8.1 kg / 17 lb 13.5 oz (17.841 lb)
  • Author
  • Model page created by Bartosz Szwed. See "Data change" for further contributors.
