Stereo Integrated DC Amplifier SU-V5

• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1981/1982

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 154557

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

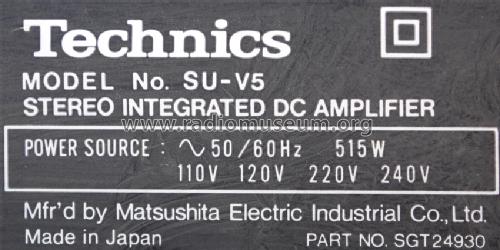

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Integrated DC Amplifier SU-V5 - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 97 x 310 mm / 16.9 x 3.8 x 12.2 inch

• Notes
• New Class A Integrated Stereo Amplifier with 60 watts RMS per channel into 8 ohms.

• Net weight (2.2 lb = 1 kg)
• 7.8 kg / 17 lb 2.9 oz (17.181 lb)

• Price in first year of sale
• 350.00 $

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
