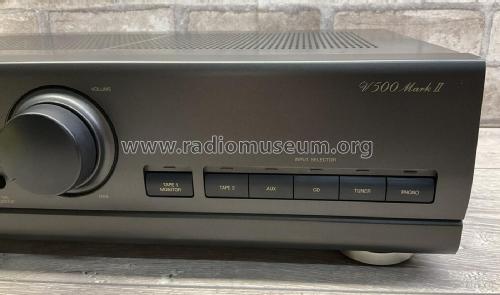

SU-V500M2

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 2000
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 298714

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220/240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: SU-V500M2 - Technics brand
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 430 x 125 x 310 mm / 16.9 x 4.9 x 12.2 inch
  • Notes

  • Integrated Stereo Amplifier, serie MASTER capacitors (TA-KEH) core transformer, power out 2x50 W Din (4 ohms), with input selection : cassette 1, cassette 2/DCC, Aux, Cd, Tuner, Phono, A-B columns selector, tone control , out headphones, remote control.

    Continuous power = 2 channels simultaneously, 50x2 W (4 Ω ) 38x2 W (8 Ω) 20Hz-20 kHz 30x2 W (8 Ω).

    Harmonic distortion 0,1 % (8 Ω)

    Frequency range : Phono MM, RIAA standard curve :+- 1 dB (30Hz-15kHz,  Tuner, Cd, DVD-channels, Aux, Tape 1, Tape 2/MD  : 3 Hz-60 kHz (+0 dB, - 3 dB) + 0 dB, - 3 dB 20 Hz-20 kHz.

    Signal noise ratio (4 ohms) : Phono MM 76 dB(77db,IHF '66) Cd, Aux, Tuner, Tape 1, Tape 2 /DCC  90 db( 95 dB,IHF '66)

    Sensitivity in / Impedance : Phono MM 2,5 μV/47 kΩ, Tuner, Cd,  Aux, Tape 1, Tape 2/DCC , 150 μV/22 kΩ.

  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
